Plastic Pigments - The Complete Guide on How Colorants Work
In the quest for a sustainable future, recycling innovations play a pivotal role in addressing environmental challenges and promoting circular economy practices. And once again, 3devo has demonstrated its value in enabling ground-breaking research innovations across diverse fields.
Introduction
In the field of Fused Deposition Modeling (FDM) 3D printing, the scope for innovation is virtually limitless. The array of available thermoplastics is large, encompassing materials such as PLA, ABS, TPU, PA6, and PEEK, among others. Each of these materials exists in many forms, specifications, and grades, offering multiple options for various applications.
While 3D-printed objects often fulfill roles in rapid prototyping and functional applications, the potential for customization extends beyond mere form and function. Indeed, the aesthetic aspect—particularly color—plays a critical role in differentiating products. This article explores the nuanced subject of filament customization, with a particular emphasis on the employment of masterbatches to imbue 3D-printing filaments with vibrant and enduring colors.
What Are Pigment Colorants Anyway?
Pigment colorants play a crucial role in determining the appearance and quality of 3D-printed objects. These colorants are added to the base polymer material to give it a specific hue. Unlike dyes, which dissolve into the material, pigments are insoluble particles that are mixed into the polymer matrix.
The addition of pigments occurs in minimal proportions, yet the impact on the filament's color is significant. One key advantage of pigments is their resistance to various environmental factors, such as light and heat, which contribute to the long-term stability of the product's color. The inert nature of pigments also ensures that they do not interfere with the chemical structure of the polymer, thus maintaining the material's inherent properties. This makes pigments a preferred choice for applications that require both aesthetic appeal and functional integrity.
In summary, pigment colorants are essential in 3D printing, offering both vibrant colors and durability without compromising the material's structural integrity.
Understanding Masterbatches
What Are Masterbatches?
A polymer masterbatch is a concentrated mixture composed of a base polymer and various additives or agents, such as pigments, fillers, stabilizers, and other processing aids that you want to infuse into your base polymer.
Let’s assume your base polymer is ABS. However, the masterbatch would also be made of ABS, containing a certain concentration of additives. Typically, 2% of the masterbatch is enough to modify the properties of the full batch. We can see it like this: 98% of virgin ABS + 2% of ABS masterbatch = 100% of enhanced ABS. Masterbatches are polymer-specific – an ABS masterbatch cannot be blended into PLA filament.
How Do Masterbatches Work?
These masterbatches serve as convenient and efficient methods for incorporating specific properties, colors, or functionalities into polymers during manufacturing. Masterbatches are typically produced via a compounding process, during which the additives are thoroughly mixed and dispersed within the polymer matrix, resulting in a homogenous blend that can be easily incorporated into end products. A small pouch of masterbatch pellets at a lab scale will help you enhance several kilograms of polymer. Masterbatches come with speed and freedom of experimentation.
The Focus on Pigment Masterbatches
Characteristics
In the case of pigment masterbatch, the additive in focus is pigment. Pigments are finely ground, colored particles that are inert in the polymer matrix, meaning that the pigment is to be dispersed into the base polymer without reacting chemically. This characteristic is pivotal, as it enables the pigments to maintain their color integrity while weaving seamlessly into the filament's structure.
The Role of the Carrier
Pigment masterbatches are precisely formulated mixtures containing a high concentration of pigment dispersed within a compatible polymer carrier. Said carrier acts as a medium for the pigments and facilitates their uniform dispersion within the polymer melt, ensuring consistent and even coloration throughout the final product. By melting inside the extruder, the carrier will release the pigment into the whole matrix, resulting in colored filament.
Why not use pure pigment?
Pigments are colorful substances ground into very fine powder. Adding pure pigment powder to virgin polymer is possible but challenging. The challenges are:
- Dosing the right proportion of polymer vs pigment
- Feeding particles of different shapes into one system homogeneously. Including fine powder, which is also difficult to handle
- Mixing homogeneously once the plastic melts
Certain twin-screw extruders are specialized in such mixing but are not suited for filament making. Sequencing the process into 2 steps is the easiest strategy:
- Pre-compounding the plastic and pigment into masterbatch pellets. Or buying the masterbatch pre-made 😉
- Extruding the plastic and masterbatch, both in pellet form, with a single-screw extruder
In other words, masterbatches allow you to bypass the pigment addition step and make filament immediately with a single screw extruder.
Inks are similar to masterbatches in the sense that they consist of a medium (water) containing a concentration of pigment. Ink cannot be poured into an extruder since water damages the extrusion process, disturbing the melting process and forming bubbles in the final filament. Other media, like oil, are also incompatible with extrusion since they disrupt friction.
Masterbatches in Action
Inside the Extruder
The process of filament extrusion can be divided into 3 phases :
- Input: Feeding in the hopper
- Core: Melting and pushing inside the barrel
- Output: Cooling down and spooling
Let’s walk through the process, focusing on what happens to the colorful masterbatch pellets.
Input: feeding in the hopper
As explained above, feeding powders can be challenging, but feeding a pellets+pellets mix is easy. In most cases, 98%wt of the pellets will correspond to virgin polymer, while the remaining 2% will be masterbatch. Because the rest of the process can act as a buffer, there is a tiny bit of room for heterogeneity. Mixing the masterbatch and carrier thoroughly in a jar and feeding the mixed input should result in sufficient homogeneity.
Core: Melting and pushing inside the barrelThis section can be divided into 3 phases. Each phase corresponds to a third of the barrel length and to a state of the matter:
- Feeding zone, the material is still solid, being grabbed by the screw from the hopper and pushing the rest of the material.
- In the transition/compression zone, the material gradually melts from solid to liquid. When the masterbatch is compatible with the carrier, both types of pellets should be melting at the same time. The same settings (screw speed, temperatures) will be applied to both the carrier and the masterbatch, so they need to have a similar melting behavior.
- Metering zone a the melting having already occurred, the liquid blend is being pushed forward. This is also the best place to include a mixing screw tip which will induce great turbulence in the flow, ensuring maximum mixing. Homogeneous results can be achieved with different screw geometries, but a mixing tip is recommended.
Output: Cooling down and spooling
The homogeneously colored filament should be coming out of the nozzle now. It shouldn’t behave much differently from virgin filament. This phase of the extrusion process allows us to tell whether the masterbatch grade is compatible with the polymer grade: numerous bumps on the filament surface indicate a severe melting issue- most likely that the masterbatch is not fully melting. In such ‘bad’ cases, troubleshooting might be possible by adjusting the settings. Otherwise, another masterbatch grade must be tested.

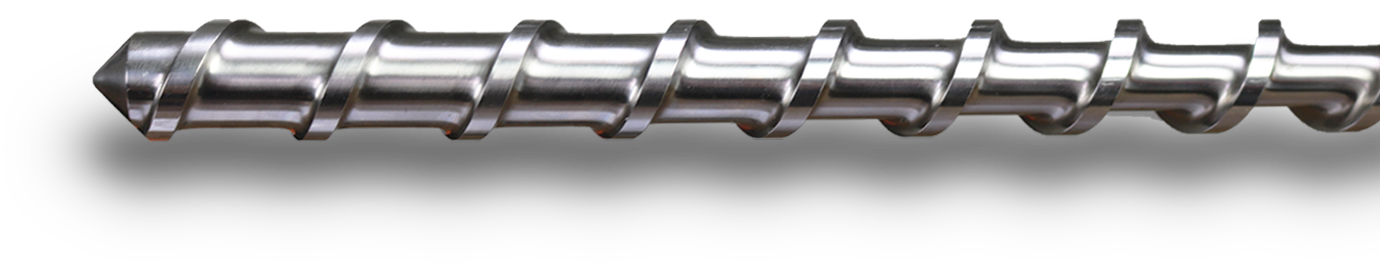

The Importance of Screw Design
The filament extrusion process relies on feeding, melting, pushing, and then obtaining filament. The mixing happens more or less throughout the whole process since extrusion relies on the rotation of a screw, causing a lot of friction. Melting can be ensured by choosing a masterbatch that is compatible with the carrier and by selecting appropriate settings (mainly screw speed and temperature profile). Some mixing happens in the early stages of the process, but especially at one crucial moment.
Mixing liquids is a lot more efficient than mixing solids in terms of homogeneity. Plastic is liquid in the last zone of the barrel–metering zone; as explained above, the tip of the screw is the main point of focus.
Traditional single-screw extruders are equipped with ‘smooth’ screw tips, perfectly designed for stability. Some extruders are designed with a special mixing screw tip. Different types of mixing tips exist, though all of them aim at the same effect: generate turbulence to mix the liquid flow.
What Could Go Wrong?
The Risk of Incompatibility
Mainly one thing: incompatibility. Incompatibility between the masterbatch and base polymer.
It will often take the form of melting issues during filament extrusion. Typically, big bumps are visible on the filament surface, corresponding to unmelted particles. Some masterbatch pellets might be melting only partially or not at all. When monitoring extrusion data, you might also be able to spot instabilities in the motor behavior, overall flow speed, and of course, filament thickness.
Implications for 3D Printing
This is a severe issue, especially when undetected and especially when it comes to 3D printing. Classic printheads being equipped with a 0.4mm nozzle, they would clog easily when a huge 1mm inconsistency will try to pass through. The goal of extrusion is to result in a very smooth filament, stable in tolerance and homogeneous in composition.
Reasons Behind Lack of Melting
The lack of melting can be due to inappropriate settings that do not allow the masterbatch to melt. For example, insufficient temperature or insufficient friction. Or perhaps the carrier melts properly on its own but is just incompatible with the masterbatch.
Solutions for Melting Issues
In order to favor melting, there are two options, mainly: increasing the temperatures to provide more conductive heat to the barrel or reducing the temperatures while increasing the screw speed. The second option is a bit counter-intuitive but is a fun example of how extrusion works. Reducing extrusion temperatures and increasing the screw speed will generate more friction inside the barrel, ultimately resulting in more heat and better melting.
Variability Among Masterbatches
Not all masterbatches are equal. Each brand is different, and so is each color. There are obviously differences between brands and suppliers, but there is more. Each individual pigment is a substance that gives color but can also alter the mechanical or melting behavior significantly.
The Case of White Masterbatch
For example, white pigment often consists of titanium dioxide and is notoriously difficult to melt. White masterbatch, therefore, often causes unmelting issues.
Masterbatch Compatibility with Specific Materials
In other words, your ABS might be compatible with the green masterbatch from a given supplier but not with the black one, just as an example.
The Importance of Compatibility Testing
It’s about finding a trusted base carrier and a high-quality masterbatch and then running a compatibility test. Once you find both as well as optimal filament making parameters, extruding colorful filament will be a breeze.
Limitations in Mass Production Repeatability
The final limitation is long-term instability or mass production repeatability. Because feeding masterbatch pellets + carrier pellets into a single-screw lab-scale extruder is technically not as accurate in the long run as a dedicated industrial installation running 24/7 for weeks or months, one might detect slight differences between several spools produced at different moments.
Subtle Color Gradient Issues
The color gradient will most likely not be visible to the naked eye but might exist. This is the little drawback that comes with great process speed and agility.
Environmental Impact of Pigments
When it comes to pigment selection, one factor often overlooked is the environmental impact. As we collectively gravitate towards sustainability, considering the eco-friendliness of pigments becomes crucial. Some pigments, especially older formulations using heavy metals like cadmium, can be detrimental to the environment. Therefore, opting for pigments free from toxic substances makes your filament more marketable and contributes to responsible manufacturing. This is especially pertinent given the rising interest in sustainable materials, a topic many competitors don't address.
The Fun Aspect: Chromatic Experimentation
Masterbatches are easy to use while still giving the user great freedom to experiment and explore. For example, adjusting the masterbatch dose finely can help you create translucent filament: colorful but still transparent. For example, when the manufacturer recommends 2-4%wt, 0.5% or 1% might do the trick.
There is always a saturation threshold. There is no need to throw in 20% of masterbatch – saturation will probably cap at 4%, and 20% might cause severe melting issues.
‘Rainbow’ or multicolored filament can be created by preparing multiple small batches of various colors and then feeding them one after the other in the Filament Maker. There is a certain inertia to the process. Since extrusion relies on continuous mixing, transitions between batches are never instantaneous. However, this can result in multiple colors on the same spool or a gradient of a single color.
Conclusion
In conclusion, the use of masterbatches to infuse captivating colors into 3D printing filaments offers a realm of creativity and personalization. These concentrated mixtures, containing base polymers and additives, seamlessly introduce specific properties and colors during manufacturing. Pigment masterbatches, especially, play a vital role by dispersing finely ground pigments uniformly within the filament, resulting in consistent and appealing colors.
During filament extrusion, careful settings and mixing screw tips ensure proper melting and mixing, although challenges of incompatibility can lead to melting issues. Despite these challenges, masterbatch-based filament personalization allows for experimentation in creating translucent filaments or multicolored gradients.
The journey of infusing color into filaments celebrates both technical prowess and creative imagination. The art of giving color to 3D printing filament, facilitated by masterbatches, harmonizes science and creativity, offering endless possibilities for users to express their visions vividly.
Why not go even further? Let’s look at the whole bright picture and the many doors unlocked by the process of Filament Making. One can now process custom exotic polymers that maybe don’t exist in filament form on the market. Enhance filament with functional additives (carbon fiber, eggshell…). And give it a color just as special as its properties and recycle it.
