Planet carriers optimised through additive manufacturing

In this R&D project at ZPP/ZHAW, a planet carrier for a planetary gearbox was optimized by additive manufacturing. An example that excellently demonstrates the "added value" of AM (L-PBF). With the result of reducing components, assembly time, inertia forces and weight.

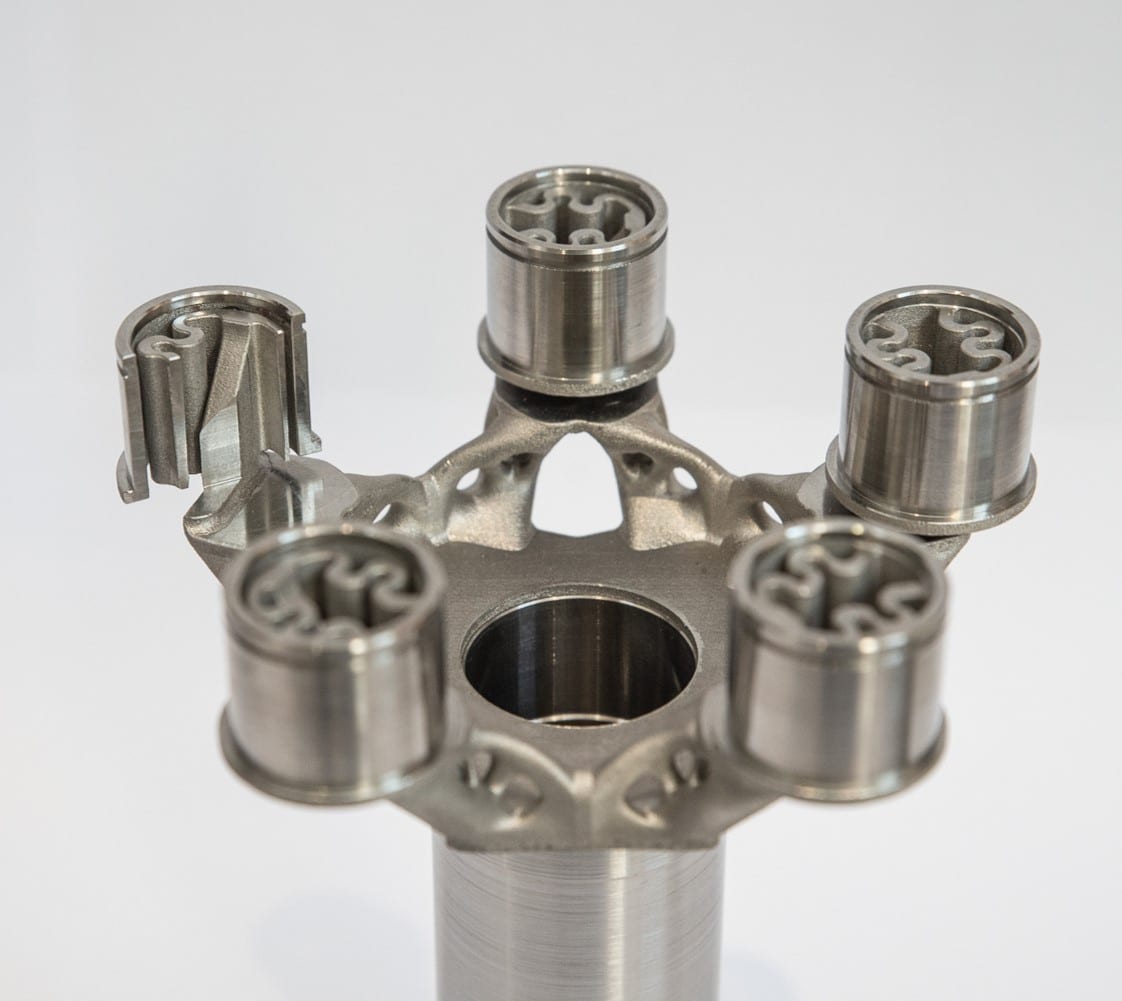

  • Planetary carrier including flexpins additively manufactured (L-PBF)
    Planetary carrier including flexpins additively manufactured (L-PBF)
  • "Added value" by additive manufacturing l. conventionally manufactured r. additively manufactured
    "Added value" by additive manufacturing l. conventionally manufactured r. additively manufactured
  • Planetary carrier as hybrid component from left: FDM prototype, after L-PBF, finished component
    Planetary carrier as hybrid component from left: FDM prototype, after L-PBF, finished component
  • Planetary carrier as hybrid component after additive manufacturing and finished post-processing
    Planetary carrier as hybrid component after additive manufacturing and finished post-processing
  • Final machining of the planet carrier on a turn-mill centre at ZPP
    Final machining of the planet carrier on a turn-mill centre at ZPP
  • Final machining of the planet carrier on a turn-mill centre at ZPP
    Final machining of the planet carrier on a turn-mill centre at ZPP

In a R&D project at ZPP/ZHAW, a planet carrier for a planetary gearbox was optimised through topology optimisation and consistent use of the design rules for additive manufacturing (DfAM) and manufactured additively using laser powder bed fusion. The entire planet carrier was designed as a hybrid component. The complex part, the actual planet carrier with the flexpins for holding the planet wheels, was additively built on the shaft body, which was easy to machine. Subsequently, the final machining was carried out on a turning-milling centre.


The results are striking:

  • Increased load capacity of the gearing
  • Reduction in the number of parts, from 27 to 1
  • Reduction in assembly time
  • Reduction of mass and inertia
  • Critical interface of sleeve and pin is no longer present


Do you have questions about this project or do you have a similar project?

Contact us - we will be happy to advise you!
